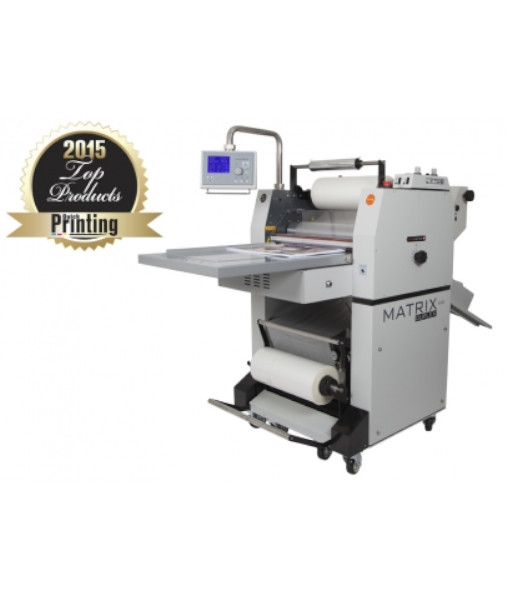

Matrix MX-530DP

  • instock
  • Matrix MX-530DP

Key Features
  • Pneumatic pressure
  • Multifunctional - laminate, foil & create spot UV-style effects
  • Laminate both sides at the same time
  • Easy-to-use control panel
  • Anti-curl technology
  • Semi-automatic feed
  • Automatic separator

Great for use in
  • Commercial printers
  • Digital printers
  • Copy and print shops

Ideally suited for
  • Business cards
  • Wedding stationery
  • Menus
  • Book covers
  • Brochures
  • Flyers
  • Bespoke foiled packaging

Omni-Flow Deep Pile Feeder Yes
Optional Stand Standard
Film Slitter Yes
Film Perforating System Standard
Ultra-Quiet Compressor Yes
Flatbook cutting & perforating accessory Yes


The award-winning Matrix MX-530 Duplex will halve your production time, laminating both sides of the sheet at the same time.

Winner of Quick Printing Readers’ Choice Top Products Awards, the Matrix Duplex is an incredibly cost-effective system that allows printers to laminate single-side, double-side and encapsulate their work, in-house.

It will laminate both sides of the printed sheet at the same time, halving your production time. Whether you gloss the front and matt the back, or use Anti-scratch film on both sides of the print, changing rolls takes a matter of minutes.

The Duplex option is produced in Britain which shortens our supply chains and lead times.

We’ve used the highest quality components within the system, including Omron switches and Schneider electrics.

Add a Matrix Omni-Flow 370 (SRA3) or OmniFlow 460 (SRA2) Deep Pile Feeder for fully automated laminating or foiling.

Take a look at the full range of accessories available for the Matrix.

Encapsulating Speed (mm/min / inches/min) 1000 / 39
Max. Laminating Speed (m/min / feet/min) 10 / 33
Max. Encapsulating Width (mm / inches) 320 / 13
Max. Laminating Film Width (mm / inches) 500 / 20
Paper Thickness (gsm / lbs) 100+ double-sided / 67-0
Warm-up Time (mins) 10
Laminating Temperature Range (°C/°F) 0-140 / 32-284
Control Panel Multilingual LCD
Pressure Adjustment Pneumatic
Film Core (mm / inches) 77 / 3
Power Supply AC (v, 50Hz) 220/240
Power Supply AC (v, 60Hz) 240
Power Supply Required (Amps) 32
Power Consumption (W) 4500
Foiling, Holographic, Glitter Lamination & Spot UV-style effects Yes
Dimensions – Width (mm / inches) 900 / 35
Dimensions – Depth x Height (mm / inches) 2050×1400 / 81×55
Gross Machine Weight (Kg / lbs) 250 / 551
Warranty 1 Year*
