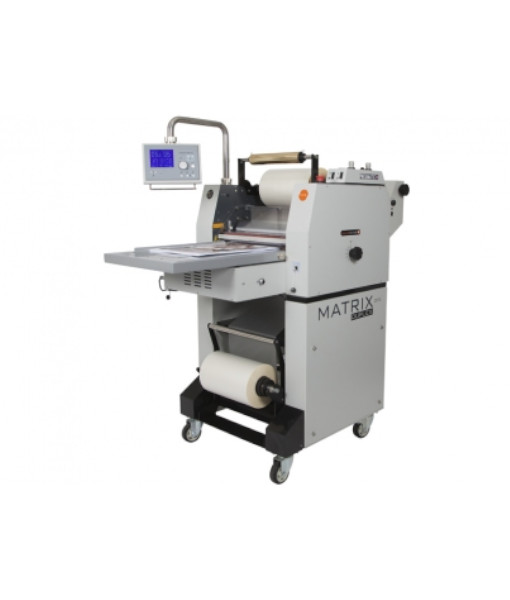

Matrix MX-370DP

  • instock
  • Matrix MX-370DP

Key Features
  • Pneumatic pressure
  • Multifunctional - laminate, foil & create spot UV-style effects
  • Laminate both sides at the same time
  • Easy-to-use control panel
  • Anti-curl technology
  • Semi-automatic feed
  • Automatic separator

Great for use in
  • Commercial printers
  • Digital printers
  • Copy and print shops

Ideally suited for
  • Business cards
  • Wedding stationery
  • Menus
  • Book covers
  • Brochures
  • Flyers
  • Bespoke foiled packaging

Accessories
Omni-Flow Deep Pile Feeder Yes
Optional Stand Standard
Film Slitter Yes
Film Perforating System Standard
Ultra-Quiet Compressor Yes
Flatbook cutting & perforating accessory Yes

Description

The Matrix MX-370 Duplex will halve your production time, laminating both sides of the sheet at the same time.

The Duplex option is produced in Britain which shortens our supply chains and lead times.

We’ve used the highest quality components within the system, including Omron switches and Schneider electrics.

Add a Matrix Omni-Flow 370 (SRA3) Deep Pile Feeder for fully automated laminating or foiling.

Take a look at the full range of accessories available for the Matrix.

Specifications
Encapsulating Speed (mm/min / inches/min) 1000 / 39
Max. Laminating Speed (m/min / feet/min) 10 / 33
Max. Laminating Film Width (mm / inches) 340 / 13
Paper Thickness (gsm / lbs) 100+ double-sided / 67-0
Warm-up Time (mins) 10
Laminating Temperature Range (°C/°F) 0-140 / 32-284
Control Panel Multilingual LCD
Pressure Adjustment Pneumatic
Film Core (mm / inches) 77 / 3
Power Supply AC (v, 50Hz) 220/240
Power Supply AC (v, 60Hz) 240
Power Supply Required (Amps) 32
Power Consumption (W) 4500
Foiling, Holographic, Glitter Lamination & Spot UV-style effects Yes
Dimensions – Width (mm / inches) 800 / 31
Dimensions – Depth x Height (mm / inches) 1800×1400 / 71×55
Gross Machine Weight (Kg / lbs) 220 / 485
Warranty 1 Year*
