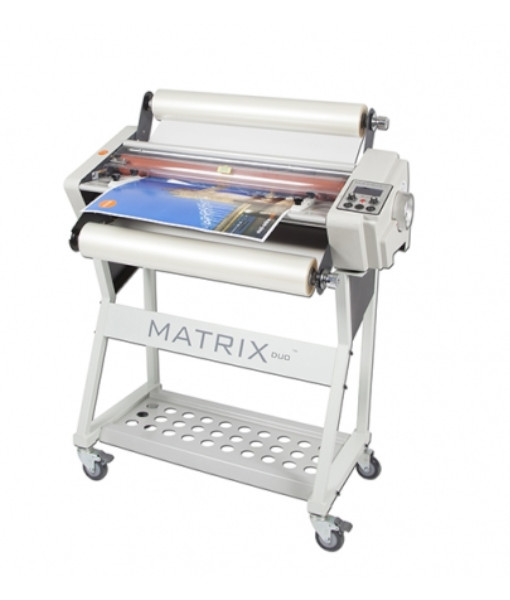

Matrix Duo MD-650

  • instock
  • Matrix Duo MD-650


Key Features
  • 1.4m/5ft a minute
  • 77mm/3” & 25mm/1” core
  • adjustable anti-curl bar
  • single sided lamination
  • encapsulation
  • double sided lamination

Great for use in
  • digital printers
  • in-house print rooms
  • copy and print shops

Ideally suited for
  • business cards
  • menus
  • brochures
  • posters & prints
  • book covers

Accessories
Optional Stand Yes
Film Slitter No
Film Perforating System Yes
Flatbook Yes
  • Yes
  • No
  • Standard

Description

Matrix Duo is a multipurpose single/double sided roll fed system ideal for both laminating and encapsulating.

The Matrix Duo is an innovative laminating system designed for laminating and encapsulating.

The Matrix Duo gives the flexibility of single side lamination, encapsulation and even double side lamination, providing an affordable and effective solution, compared to outsourcing.

Specifications
Laminating Speed (m/min / feet/min) 1.4 / 5
Encapsulating Speed (mm/min / inches/min) 1.4 / 0
Max. Width (mm / inches) 650 / 26
Warm-up Time (mins) 10
Laminating Temperature Range (°C/°F) 0-140 / 32-284
Film Core (mm / inches) 25 & 75 / 1 & 3
Power Supply AC (v, 50Hz) 220/240
Power Supply AC (v, 60Hz) 110
Power Supply Required (Amps)
Power Consumption (W) 1600
Dimensions – Width (mm / inches) 960 / 38
Dimensions – Depth x Height (mm / inches) 480×400 / 19×16
Gross Machine Weight (Kg / lbs) 55 / 121
Warranty 1 Year*
