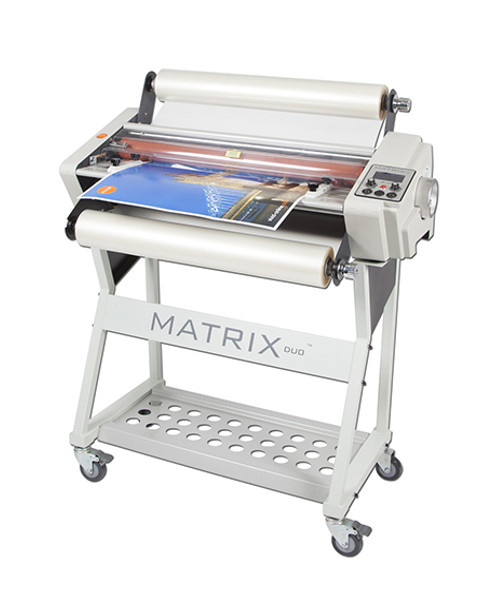

Matrix Duo MD-650 A1 Roll Laminator

  • instock
  • MD650matrix duo

The Matrix Duo is an innovative laminating system designed for laminating and encapsulating.

The Matrix Duo gives the flexibility of single side lamination, encapsulation and even double side lamination, providing an affordable and effective solution, compared to outsourcing.

Description

The Matrix Duo is an innovative laminating system designed for laminating and encapsulating.

The Matrix Duo gives the flexibility of single side lamination, encapsulation and even double side lamination, providing an affordable and effective solution, compared to outsourcing.

Specifications
Laminating Speed (m/min / feet/min)                              1.4 / 5
Encapsulating Speed (mm/min / inches/min)                1.4 / 0
Max. Width (mm / inches)                                                  650 / 26
Warm-up Time (mins)                                                         10
Laminating Temperature Range (°C/°F)                         0-140 / 32-284
Film Core (mm / inches)                                                      25 & 75 / 1 & 3
Power Supply AC (v, 50Hz)                                                 220/240
Power Supply Required (Amps)                                         –
Power Consumption (W)                                                     1600
Dimensions – Width (mm / inches)                                  960 / 38
Dimensions – Depth x Height (mm / inches)                 480×400 / 19×16
Gross Machine Weight (Kg / lbs)                                     55 / 121
Warranty                                                                               1 Year

  • Keeping things Smooth

    The unique anti-curl bar on both Matrix Duo models allows the thinnest of laminates to be applied without the worry of a curled finish.

    Keeping things Smooth
  • Fingertip Control

    The easy-to-use control panel takes virtually no training, yet it offers you complete control over every job.

    Fingertip Control
  • Gloss over Quickly, Matt in Minutes

    Each of the Matrix Duo models have extension arms that allow large rolls of film (up to 1000m/3280ft) to be used, saving changeover time. Each machine is also supplied with both 25mm / 1″ and 77mm / 3″ core adapters, to give you even more flexibility.

    Gloss over Quickly, Matt in Minutes
