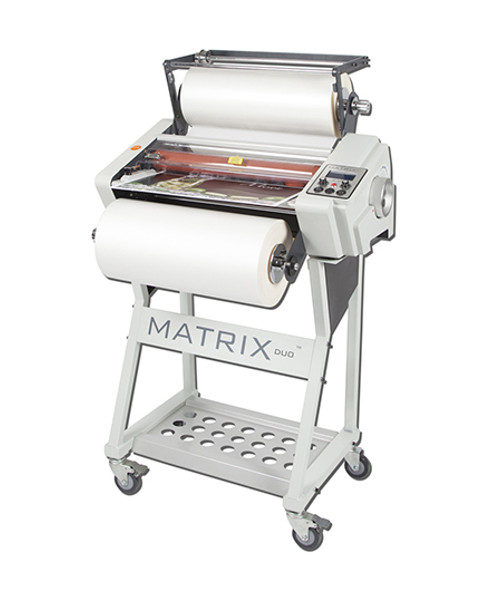

Matrix Duo MD-460 A2 Roll Laminator

  • instock
  • MD460

The Matrix Duo is an innovative laminating system designed for laminating and encapsulating.

The Matrix Duo gives the flexibility of single side lamination, encapsulation and even double side lamination, providing an affordable and effective solution, compared to outsourcing.

Description

The Matrix Duo is a hot laminator and allows the flexibility of single side OPP roll film lamination and encapsulation providing an affordable and effective solution to outsourcing.

Built for continuous use on an everyday basis and constructed using parts of the highest quality only.

The Matrix Duo is an innovative laminating system designed for laminating and encapsulating.

The Matrix Duo gives the flexibility of single side lamination, encapsulation and even double side lamination, providing an affordable and effective solution, compared to outsourcing.

Specifications

Laminating Speed (m/min / feet/min)                  1.4 / 5
Encapsulating Speed (mm/min / inches/min)    1.4 / 0
Max. Width (mm / inches)                                       460 / 18
Warm-up Time (mins)                                              10
Laminating Temperature Range (°C/°F)               0-140 / 32-284
Film Core (mm / inches)                                           25 & 75 / 1 & 3
Power Supply AC (v, 50Hz)                                      220/240
Power Supply Required (Amps)                              –
Power Consumption (W)                                          950
Dimensions – Width (mm / inches)                       720 / 28
Dimensions – Depth x Height (mm / inches)        480×400 / 19×16
Gross Machine Weight (Kg / lbs)                            45 / 99
Warranty                                                                       1 Year

Key Features

  • 1.4m/5ft a minute
  • 77mm/3” & 25mm/1” core
  • adjustable anti-curl bar
  • single sided lamination
  • encapsulation
  • double sided lamination

Great for use in

  • digital printers
  • in-house print rooms
  • copy and print shops

Ideally suited for

  • business cards
  • menus
  • brochures
  • posters & prints
  • book covers
