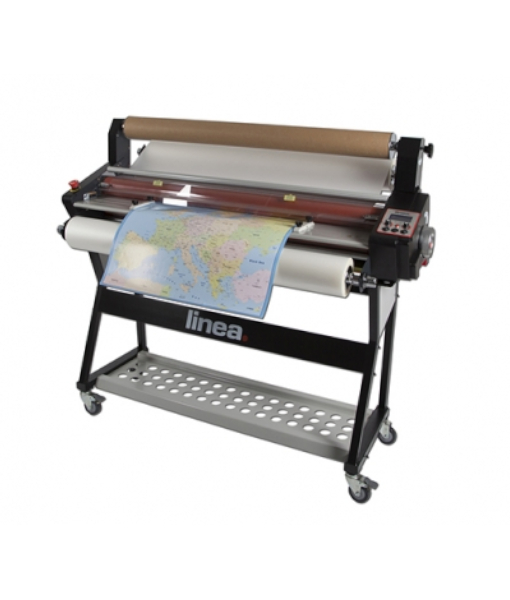

- Linea DH-1100
- Solidly built from all-metal components
- Large diameter rollers to withstand the rigours of continuous operation
- Available in 4 sizes from A3 - A0 / 11x17" - 34x42"
Great for use in
- In house print
- Colleges & Universities
Ideally suited for
- Teaching aids
|Hand Safety Trimmer|
The Linea DH-1100 is a continuous roll fed system that allows non-stop lamination for demanding jobs.
The Linea DH-1100 has been designed for jobs that just can’t wait. As well as being able to cope with long, continuous runs, its highly versatile and ideal for laminating different size media such as long banners or odd shaped pieces.
The system has been carefully designed with well thought out features making it easy-to-use and highly efficient.
|Encapsulating Speed (mm/min / inches/min)||1600 / 63|
|Max. Width (mm / inches)||1070 / 42|
|Max. Encapsulating Width (mm / inches)||1070 / 42|
|Mounting Thickness (mm / inches)||5 / 0|
|Warm-up Time (mins)||15|
|Laminating Temperature Range (°C/°F)||0-140 / 32-284|
|Film Core (mm / inches)||57 & 77 / 2 & 3|
|Power Supply AC (v, 50Hz)||220/240|
|Power Supply AC (v, 60Hz)||240|
|Power Supply Required (Amps)||–|
|Power Consumption (W)||2700|
|Dimensions – Width (mm / inches)||1370 / 54|
|Dimensions – Depth x Height (mm / inches)||420×310 / 17×12|
|Gross Machine Weight (Kg / lbs)||200 / 441|
