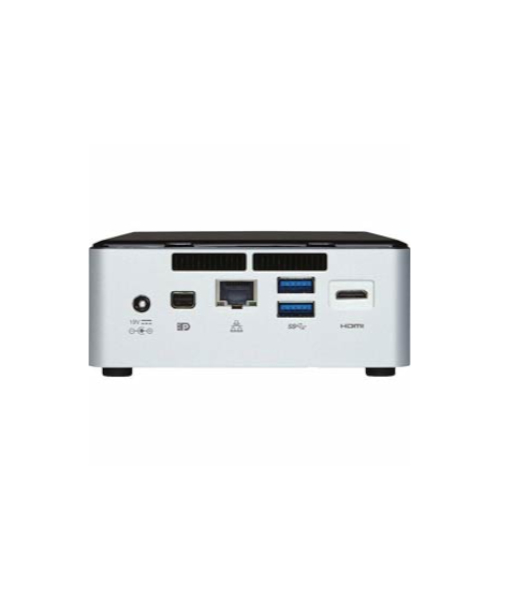

INTEL – BAREBONE SMALL FORM FACTOR I5-6260 NO RAM, NO HDD

  • instock
  • Intel BOXNUC6I5SYH

General Brand Intel Series NUC (Next Unit of Computing) Model BOXNUC6I5SYH CPU Supported CPU Type 6th generation Intel Core i5-6260U (1.8 GHz up to 2.9 GHz Turbo, Dual Core, 4MB Cache, 15W TDP) Memory Supported Memory installed No Memory Memory slot 2 x 260Pin SO-DIMM Memory Type Supported DDR4 2133 Max Memory Supported 32GB Dual […]

Description

General
Brand
Intel
Series
NUC (Next Unit of Computing)
Model
BOXNUC6I5SYH

CPU Supported
CPU Type
6th generation Intel Core i5-6260U (1.8 GHz up to 2.9 GHz Turbo, Dual Core, 4MB Cache, 15W TDP)

Memory Supported
Memory installed
No Memory
Memory slot
2 x 260Pin SO-DIMM
Memory Type Supported
DDR4 2133
Max Memory Supported
32GB
Dual Channel Memory Supported
Yes

Expansion Slots
Other
Internal support for M.2 SSD card (22×42 or 22×80)
Internal SATA3 support for 2.5″ HDD/SSD (up to 9.5mm thickness)
SDXC slot with UHS-I support on the side

Storage
Hard Drive Installed
No Hard Drive

Graphics
Onboard Video
Intel Iris graphics 540
1 x full-size HDMI 1.4b
1 x mini DisplayPort 1.2

Audio
Channel
7.1 Channel

Communications
Max LAN Speed
10/100/1000Mbps
Wireless LAN
IEEE 802.11ac
Bluetooth
Bluetooth 4.1

Front Panel Ports
Front USB
2 x USB 3.0
2 x Internal USB 2.0 via header

Back Panel Ports
Rear USB
2 x USB 3.0

Power Supply
Power Supply
Power Adapter:
19V, 65W wall-mount AC-DC power adapter
Multi-country plugs

Physical SPEC
Dimensions
1.89″ x 4.53″ x 4.37″
Material
Aluminum and Plastic

Features
Features
Support for user-replaceable 3rd party lids
NFC and AUX_PWR headers
OS certs: Windows 10, 8 & 8.1 Logo’d
OS compatibility: Ubuntu, Linux Mint, Fedora, OpenSUSE
VESA mount bracket and mounting hole support
Low-acoustics active cooling design
Kensington lock with base security
Integration Guide
12-19V DC Power Input
