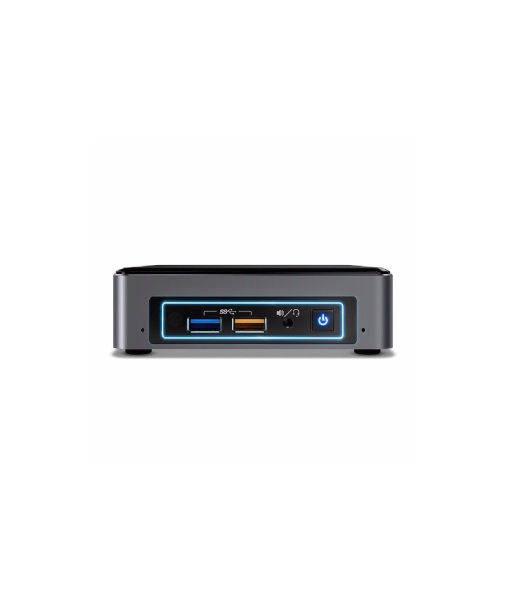

INTEL – BAREBONE SMALL FORM FACTOR I3-7100U (M.2 ONLY)

  • instock
  • BOXNUC7i3BNK

General Brand Intel Series NUC (Next Unit of Computing) Model BOXNUC7I3BNK CPU Supported CPU Type 7th Generation Intel Core i3-7100U 2.4 GHz, Dual Core 3MB cache, 15W TDP Memory Supported Memory installed No Memory Memory slot 2 x 260Pin SO-DIMM Memory Type Supported DDR4 2133 Max Memory Supported 32GB Expansion Slots Other M.2 22×42/80 (key […]

Description

General
Brand
Intel
Series
NUC (Next Unit of Computing)
Model
BOXNUC7I3BNK

CPU Supported
CPU Type
7th Generation Intel Core i3-7100U
2.4 GHz, Dual Core
3MB cache, 15W TDP

Memory Supported
Memory installed
No Memory
Memory slot
2 x 260Pin SO-DIMM
Memory Type Supported
DDR4 2133
Max Memory Supported
32GB

Expansion Slots
Other
M.2 22×42/80 (key M) slot for SATA3 or PCIe X4 Gen3 NVMe or AHCI SSD
Micro SDXC slot with UHS-I support

Storage
Hard Drive Installed
No Hard Drive

Graphics
Onboard Video
Intel HD Graphics 620

Audio
Channel
7.1 Channel

Communications
LAN
Intel i219V
Max LAN Speed
10/100/1000Mbps
Wireless LAN
Intel Wireless-AC 8265 soldered-down, IEEE 802.11ac 2×2
Bluetooth
Bluetooth v4.2

Front Panel Ports
Front USB
2 x front USB 3.0 (one charging)
2 x internal USB 2.0 via header

Back Panel Ports
HDMI
HDMI 2.0 (4K 60Hz)
VGA
DisplayPort 1.2 via USB-C
Rear USB
2 x rear USB 3.0

Power Supply
Input
12V – 19V DC input range
Power Supply
19V 65W wall-wart power supply with interchangeable plugs included

Physical SPEC
Dimensions
1.38″ x 4.37″ x 4.53″

Features
Features
Microsoft Windows 10 logo’d, compatiblewith various Linux distros
Multi-color front panel LED light ring
Built-in dual array microphones
VESA mounting plate included
Front-panel and AUX_PWR internal headers
Individualretail packaging
